Product Highlights

Waterproof and rugged
304 Stainless steel encased to improve thermal transfer with air
White Radiation shield blocks radiative heat transfer from the sun and surroundings
Plug & Play with beadedstream loggers

Overview

This single point temperature cable is a perfect match for air temperatures. The internal sensor is thermally coupled to the surrounding stainless steel, providing a fully waterproof housing with rapid temperature response.

The stainless housing also provides excellent temperature and chemical resistance making it suitable for nearly any environment.

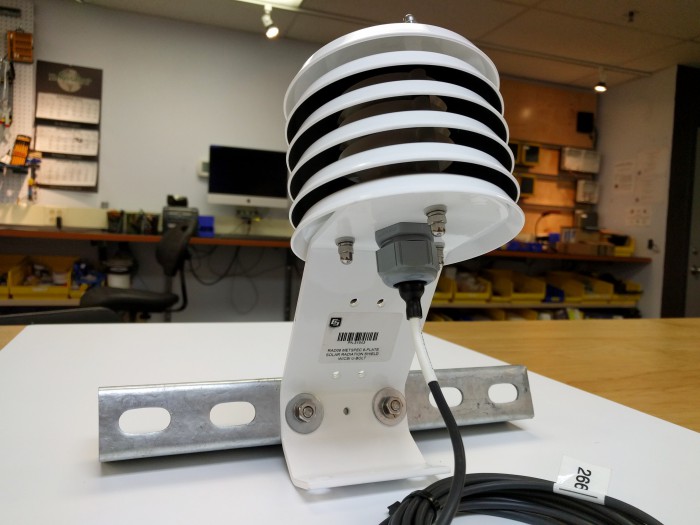

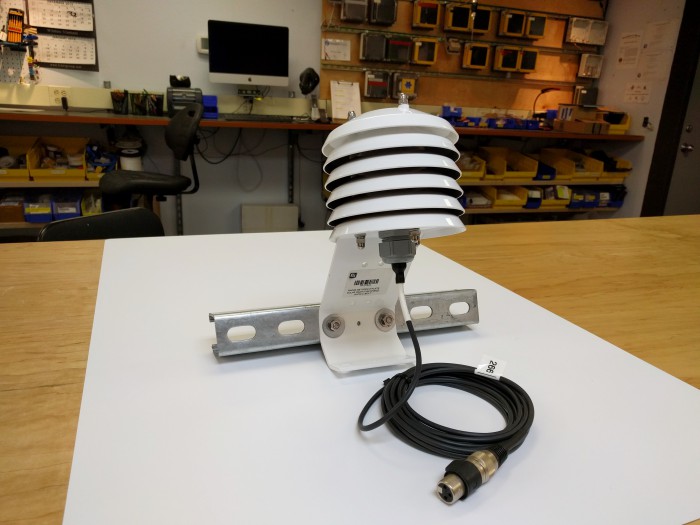

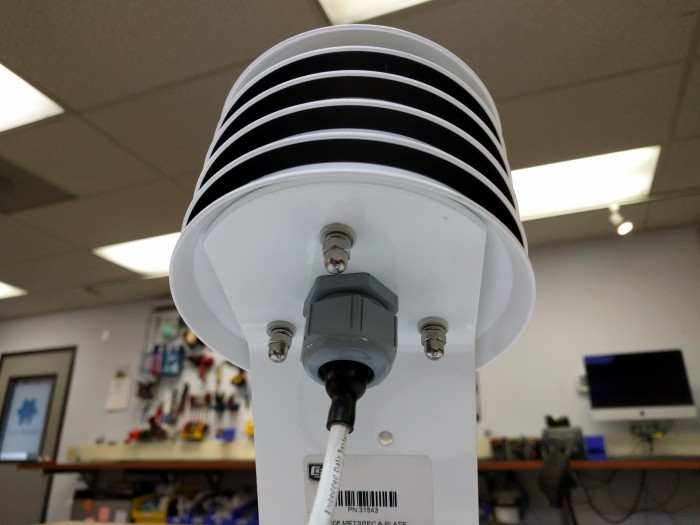

The accompanying radiation shield layers additional weathering properties while maintaining excellent air temperature tracking.

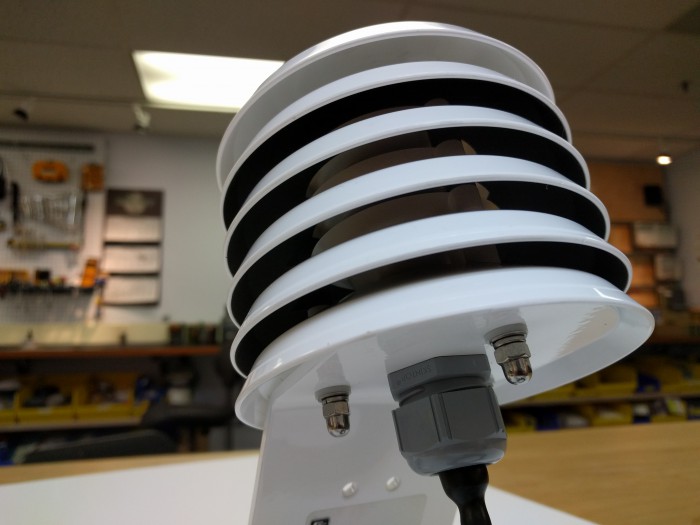

The louvered stainless housing and radiation shield protects the internal sensor from the elements to improve temperature tracking accuracy and rapid response.

Specification

Probe diameter	0.218 ± 0.002” ((0.554cm ± 0.005cm)
Probe material	304 stainless steel
Cable length	12 feet (3.66 m) (call for custom length)
Operating Range	-55° C to 125° C (-67° F to 257° F)
Sensor Accuracy	± 0.1° C from -10° to 30° C (14° to 86° F)

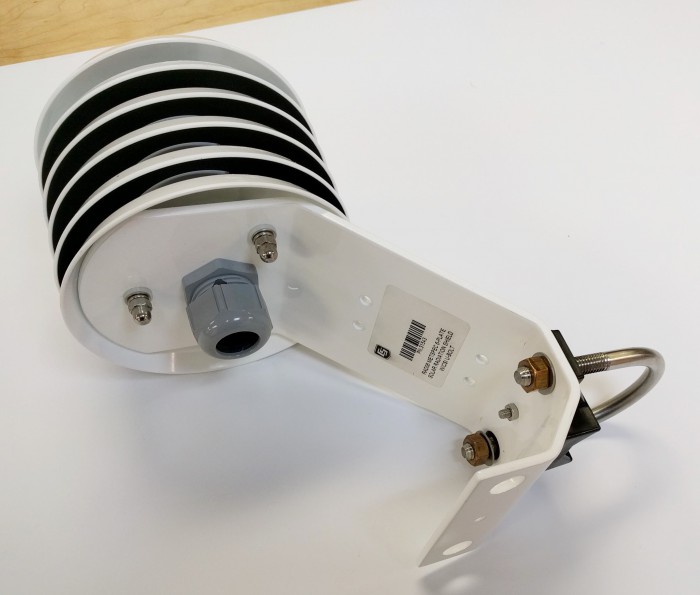

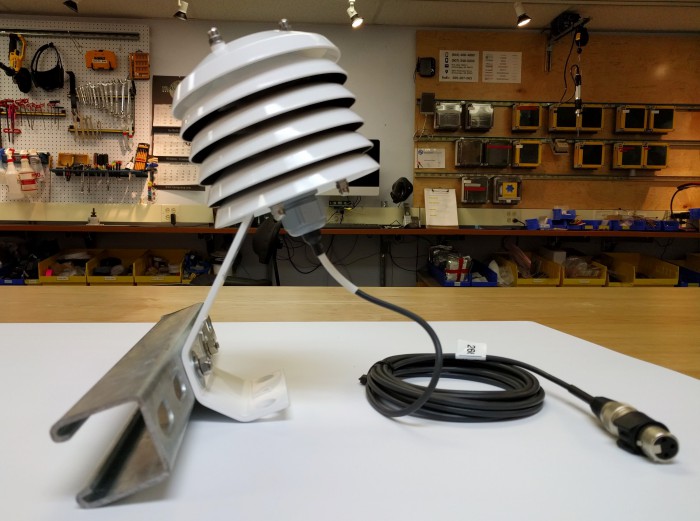

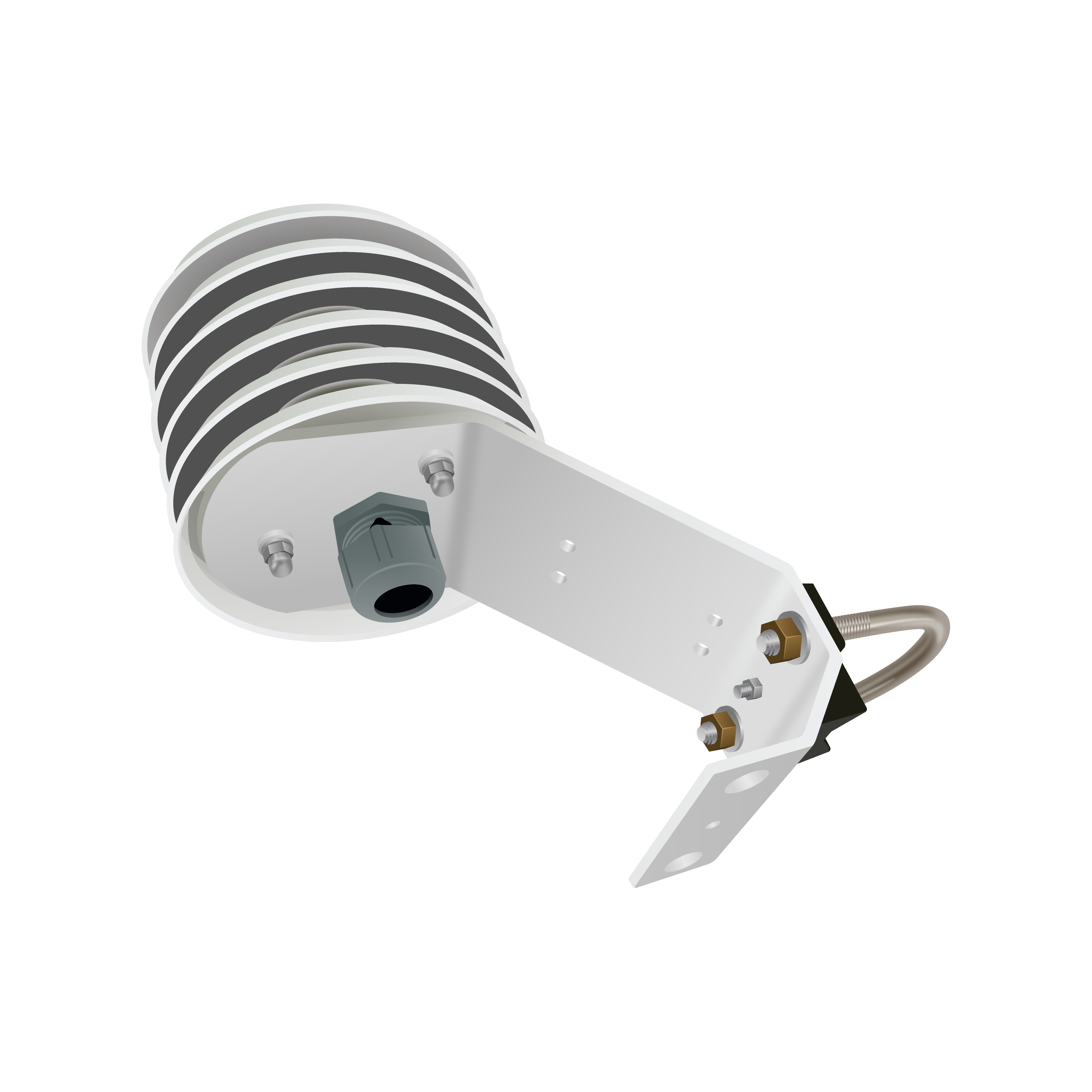

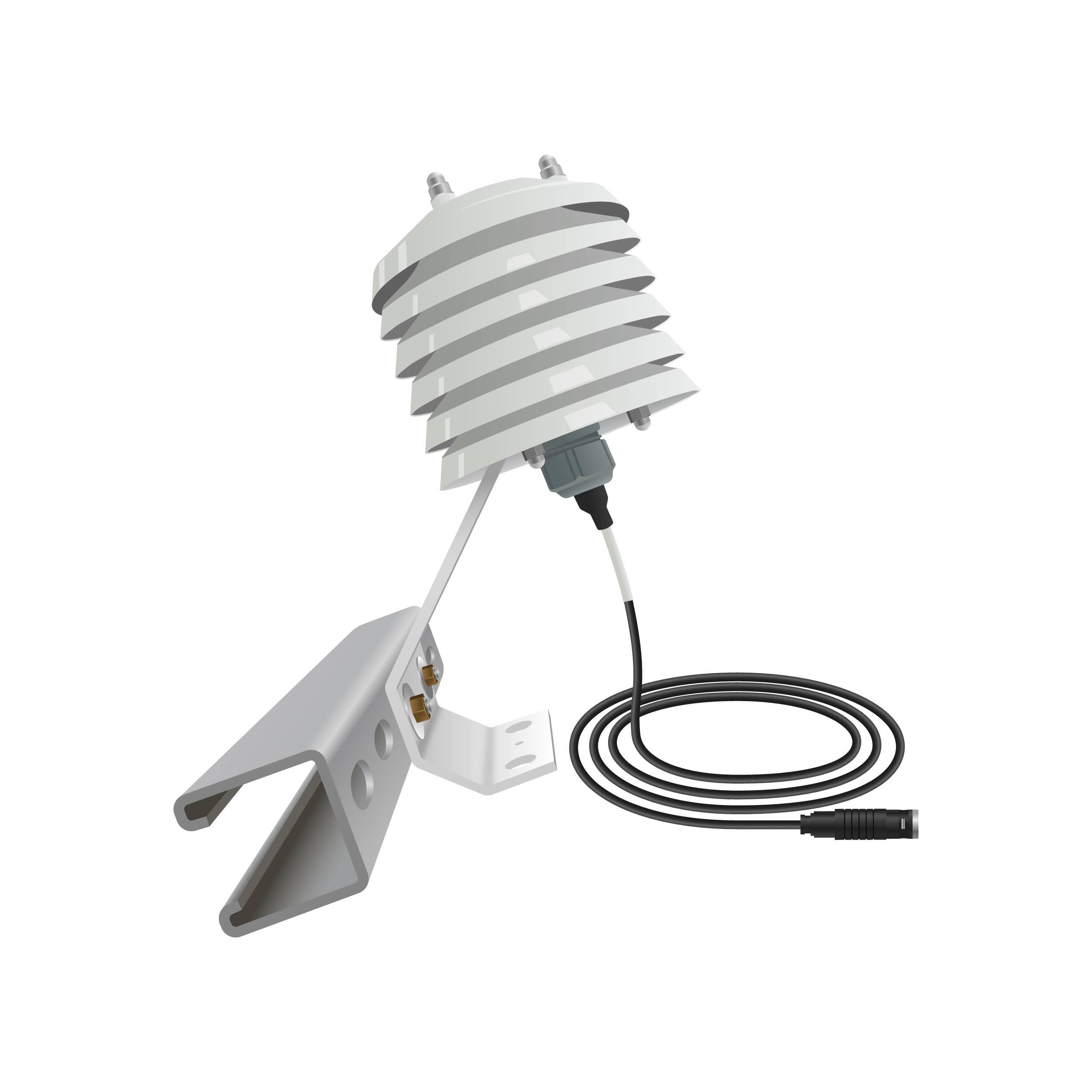

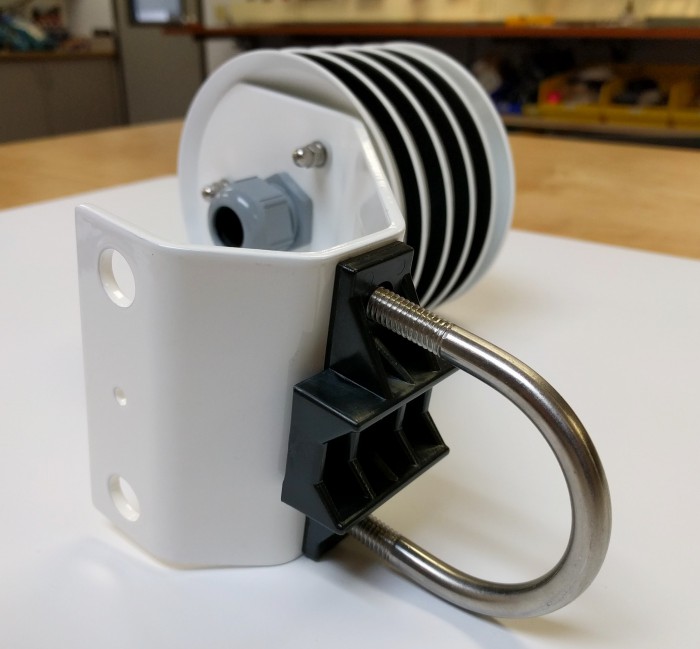

Radiation shield	Mounts to pipe with a 2.5 cm (1.0 in) to 5.3 cm (2.1 in) OD (with stock hardware, can also mount to unistrut) Louvre allows air to pass freely through the shield, keeping the probe at or near ambient temperature Double louvered design gives improved sensor protection from driving rain, snow, insect intrusion, lower self-heating

Documents

Air Temp Sensor w_ Radiation Shield Specsheet [858 KB]

Configuration

Lead length (3 to 12ft)

FAQs

The radiation shield is designed to protect temperature sensors from direct sunlight, ensuring accurate measurement of ambient temperature without interference from solar radiation.
