Product Highlights

Plug & Play
Use existing data networks to gather your data
125 sensors worth of data per Ethernet Activator
Additional protection for your sensors (Over 27kV)
User-defined alarms for quick problem detection

Overview

Add beadedstream Digital Temperature Cables (DTCs) on to your LAN with the Ethernet Activator. Take advantage of structured cabling that already exists in your building. Save time. Save money. Use existing Cat 5/6, switches, routers, the Internet, and in-house MIS expertise to build out your temperature monitoring network.

A modern solution for building integration of beadedstream’s Digital Temperature Cables. The Ethernet Activator is a small DIN rail mountable unit that processes temperature and DTC metadata and delivers it via HTTP POST and other popular protocols.

Commonly used after construction of a building to give an IP address to your data, transmitting live to your network.

Specification

Access Remotely	Receive real-time data and remotely configure
Programmatic Interfaces	HTTP, HTTP POST, SNMP, TCP Socket, Multicast, DHCP
Responsiveness	Does not require temperature conversion Real-time graphing and logging
Capacity	500 ft (152.5 m) - maximum DTC length

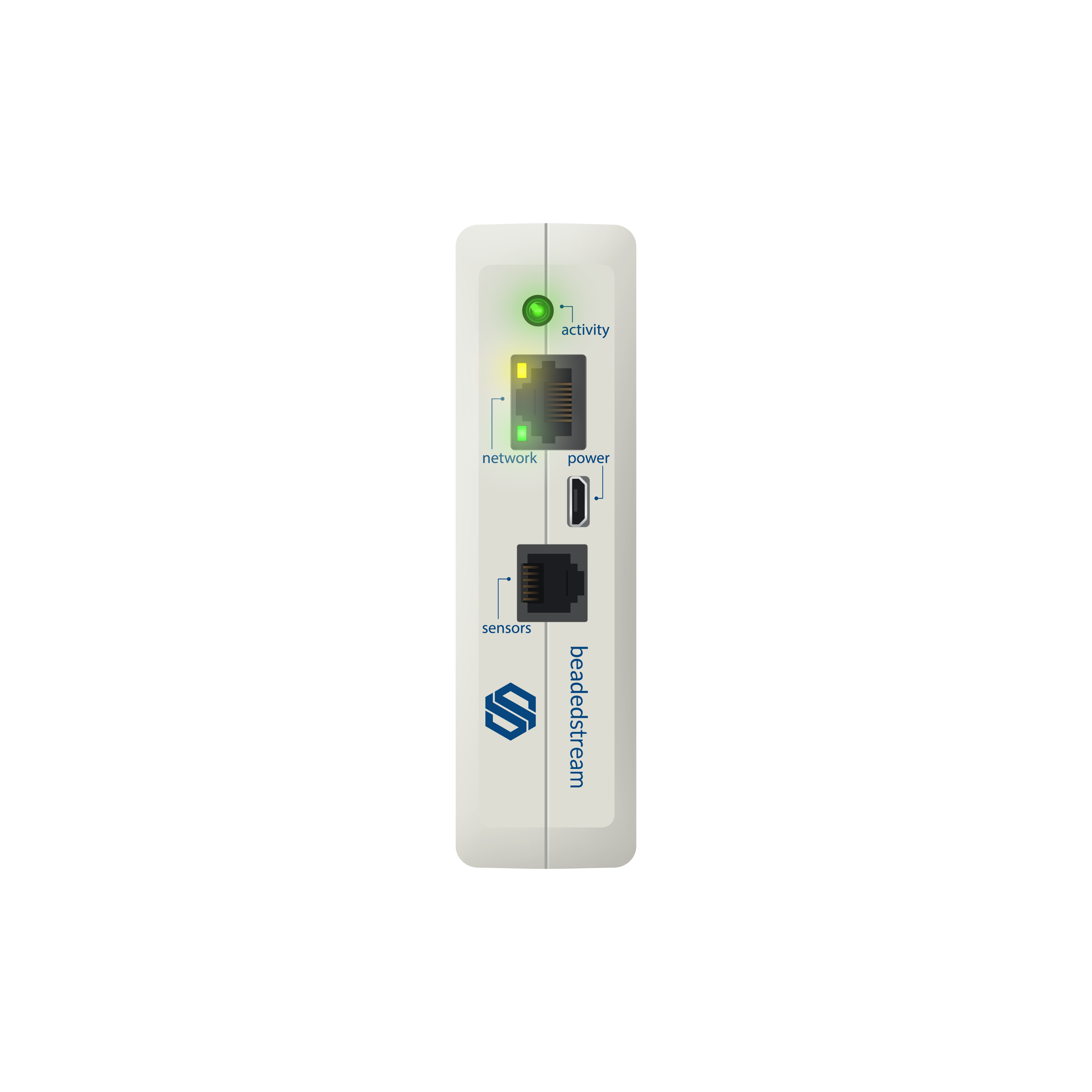

Connections	RJ12 jack (DTC). Supports 1 DTC up to 125 sensors. Ethernet RJ45 jack (data) Micro USB (power/configuration)
Power and Protection	5V USB charger to standard duplex outlet (USA) included. Over 27kV static discharge protection on data line
Weight and Dimensions	0.3 lbs (0.15 kg) 4.5 in x 2.5 in x 1.25 in (11.5 cm x 9 cm x 3 cm)
Mounting	DIN Rail

Documents

Ethernet Activator Specsheet [1 MB]

View Download

Configuration

Custom panel box build

FAQs

Yes, the Ethernet Activator typically requires IT support from your site to set up. Configuring the network settings, ensuring proper connectivity, and integrating the device into your existing infrastructure usually involve IT expertise. It’s essential to have your IT team involved to ensure a smooth and secure installation process. beadedstream cannot provide this support.

One cable requires one Ethernet Activator.
