Product Highlights
  • Measures snow depth from 0 to 2 feet (61 cm).
  • Interfaces seamlessly with standard beadedstream data loggers.
  • Daily snow depth data displayed on beadedcloud.
  • High reliability under harsh conditions.
  • Durable construction leads to lower project costs over time.
  • Remote monitoring available through any web browser.
  • Can be deployed even after snowfall.

Overview

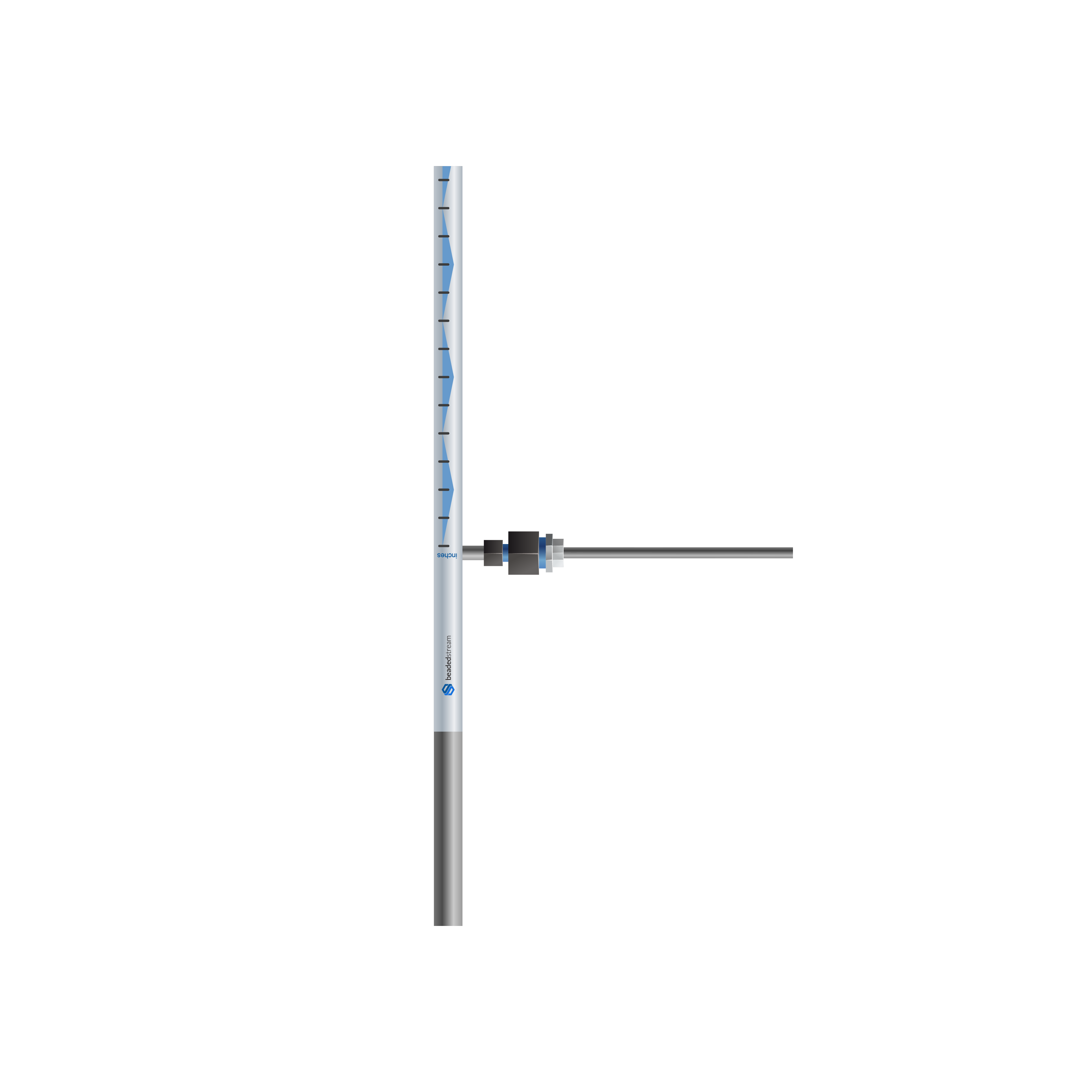

The beadedstream Snow Depth Monitor (SDM-24) is a cutting-edge device designed specifically for harsh environments and remote locations. Constructed from rugged stainless steel, this waterproof probe ensures reliable and accurate snow depth measurements from 0 to 2 feet (61 cm). Its robust design includes a 2-foot-long (61 cm) anchor section, providing long-term stability when installed in the ground.

The SDM-24 integrates seamlessly with beadedstream’s industry-leading data loggers, featuring satellite communication for remote data access. Snow depth data is automatically plotted on a daily chart, accessible via beadedcloud through any web browser. This setup eliminates the need for costly travel to physically check snow depth, making it an ideal solution for remote monitoring.

Unlike other snow depth measurement techniques, the SDM-24 does not require calibration or referencing with a known plane, and it can be deployed even after snowfall. The device’s high reliability and low maintenance requirements translate to lower overall project costs, redefining snow depth monitoring with a rugged, efficient, and user-friendly approach.

Specification

Data Presentation

● Snow depth value plotted daily on beadedcloud (subscription required)

Construction

● Stainless steel

Snow Depth Range

● Up to 2 ft (61 cm)

Resolution & Accuracy

● 1 inch (2.5 cm)

Probe Length

● 4' - 7 3/4" (141.6 cm)

Probe Diameter

● 0.5 inch (1.27 cm)

Cable Lead Length

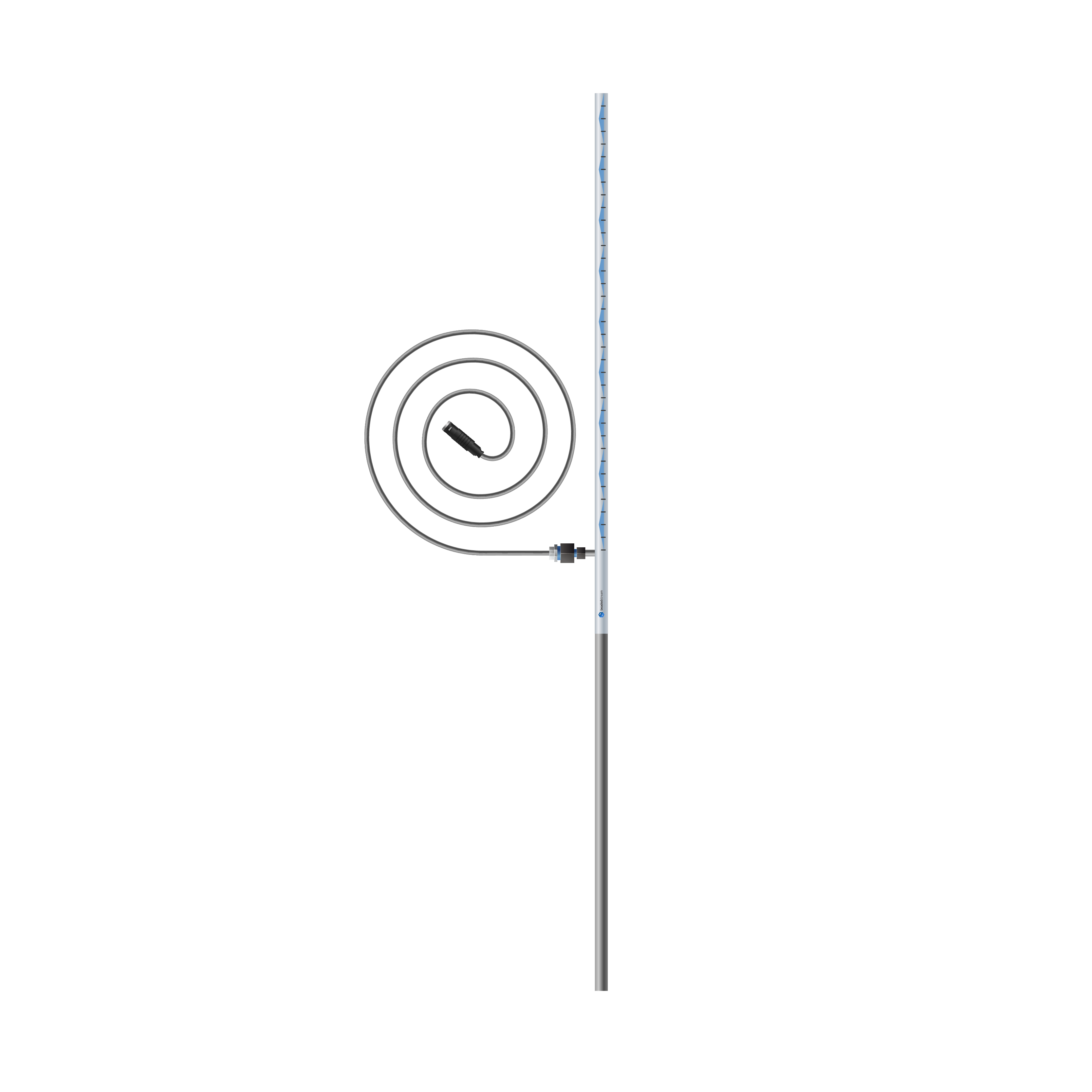

● 16.4 ft (5 m)

Operating Range

● -55°C to 125°C (-67°F to 257°F)

Waterproof

● Yes

Anchor Section Length

● 2 ft (61 cm) anchor section to secure to the ground

Compatibility

● Works with beadedstream data loggers

Calibration

● Does not require field calibration before or after snowfall
